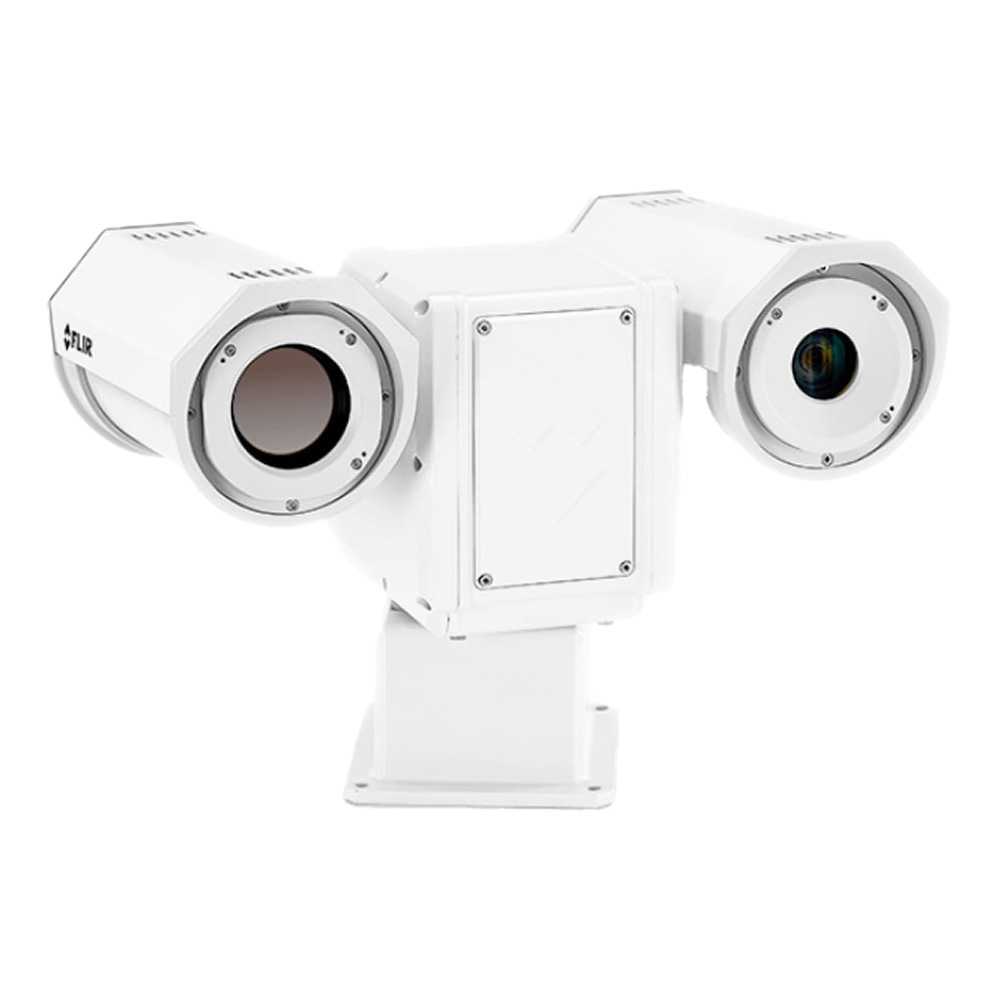

Teledyne FLIR PT-617 4K AI Visible 4K and Thermal Pan/Tilt Short Range Security Camera
Thermal Camera
- Array Format (NTSC): 640 x 480
- Field of View: 17°(H) x 14°(V)
- Focal Length: 35 mm
- Spectral Range: LWIR 7.5 μm – 13.5 μm
- Detector Type: Uncooled VOx Microbolometer
- Pixel Pitch: 17 μm
- Thermal Frame Rate NTSC: 30 Hz
- Effective Resolution: 307,200
Visible Camera
- Array Format (NTSC): 1080p HD
- Field of View: 63.7° (wide) to 2.3° (tele)
- Focal Length: 4.3 mm (wide) to 129.0 mm (tele)
- Sensor Type: Full HD 1080p 1/2.8-type Exmor R CMOS
- Iris Range: F1.6 to F4.7
- Zoom: 30x Optical Zoom with Auto Focus
This product has been marked EOL (end of life).
We usually have a majority of these items in stock.
Please call or contact us for availability.
PT-617 4K AI
13 mm 25/30 Hz – VISIBLE 4K AND THERMAL PAN/TILT
The FLIR PT-Series AI SR is our most advanced multi-sensor security camera, featuring a high-performance <25 mK NEtD uncooled thermal sensor with 640 × 512 resolution, a 4K visible-light imaging sensor with 25× optical zoom and outstanding low-light performance. Enhanced with FLIR Fusion AI video analytics, the PT-Series AI SR offers reliable edge-based detection and classification of human and vehicle targets at extended ranges. Combined with FLIR Nexus®, the PT-Series AI SR allows you to seamlessly track objects or people and provides uninterrupted target tracking—even beyond a radar’s field of view. The PT-Series AI SR integrates easily with other major third party video management systems, making it an extremely versatile solution for critical infrastructure protection in total darkness, bright sun, and adverse conditions.
Detect, Track, and Act
Advanced Multi-Sensor Imaging for
All Conditions The FLIR PT-Series AI-SR combines a high-sensitivity <25 mK uncooled thermal sensor with up to 4× continuous zoom and a 4K visible-light camera featuring 25× optical zoom and superior low-light performance. This powerful dual-sensor design ensures clear, actionable imaging in complete darkness, bright sunlight, and challenging weather.
Edge AI Analytics for Smart Threat Detection Equipped with FLIR Fusion AI video analytics, the PT-Series AI-SR delivers real-time object detection, classification of people and vehicles, right at the edge. This reduces false alarms, improves situational awareness, and enables faster, more accurate responses without relying on external processing.
Seamless Sensor Fusion with FLIR Nexus®
Fully integrated with FLIR Nexus®, the PT-Series AI-SR enables seamless coordination with FLIR radars and other thermal and visible cameras to maintain continuous tracking—even beyond a radar’s field of view. With high-speed, precision pan/tilt performance and 360° coverage, it’s ideal for wide-area surveillance and perimeter protection.
| Detector Type | |
|---|---|
| Dimensions (L x W x H) | |
| Frame Rate | |
| Input Voltage | |
| Power Consumption | |
| Resolution | |
| Thermal Effective Resolution | |
| Thermal E-Zoom |
Continuous E-Zoom to 4× |
| Thermal Focus Range | |
| Pixel Pitch | |
| Spectral Band | |
| Weight | |
| Zoom | |
| De-Icing/Anti-Icing | |
| Humidity | |
| IP Rating | |
| Operating Temperature Range | |
| Shock | |
| Storage Temperature Range | |
| Vibration | |
| Programmable Presets | |
| Sensor Type | |
| Pan Angle/Speed | |
| Tilt Angle - Speed | |
| Ethernet | |
| Ext. Analytics Compat. | |
| Network APIs | |
| Serial Control Interfaces | |
| Supported Protocols |
IPV4, HTTP, UPnP, DNS, NTP, RTSP, RTCP, RTP, TCP, UDP, ICMP, IGMP, DHCP, ARP, SCP |
| Focal Length - Thermal | |
| Thermal Image Settings | |
| Composite Video NTSC or PAL | |
| Video Compression | |
| Video Image Uniformity Optimization |
Automatic Flat Field Correction (FFC) – Thermal and Temporal Triggers |
| Video Streaming | |
| Video Thermal AGC Modes |
Linear AGC, Histogram AGC, Dynamic Detail Enhancement (DDE), Sensitivity |
| Video Thermal AGC Region of Interest [ROI] |
Default, Presets and User definable to insure optimal image quality on subjects of interest |
| Field of View | |
| f-number | |
| Focal Length | |
| Lens Field of View | |
| Low Light Sensitivity | |
| Noise Reduction | |
| Sensitivity | |
| Sensor Illumination | |
| WDR |
