RHPC-2500 – 1/4” CMOS Color Board Camera
$214.00
We usually have a majority of these items in stock. Please call or contact us for availability.
- 1/4″ High Resolution Analog NTSC Color Board Camera
- 22×26 mm Single Board
- Extremely Compact
- High Resolution
- 5 volt DC Operation
- 640×480 Resolution
- Up to 30fps
We usually have a majority of these items in stock.
Please call or contact us for availability.

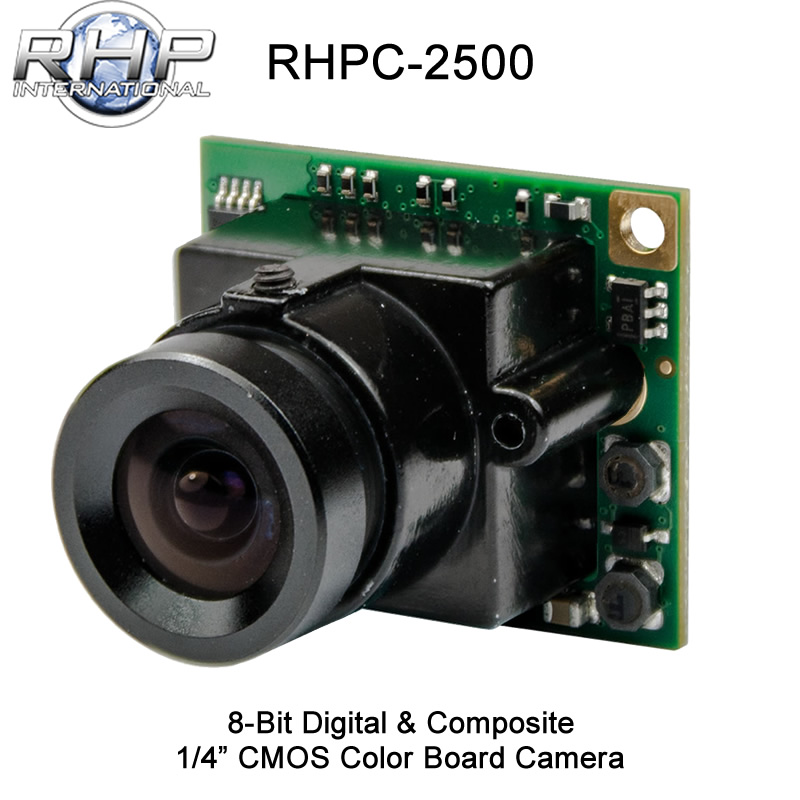

RHPC-2500
1/4″ CMOS Color Board Camera

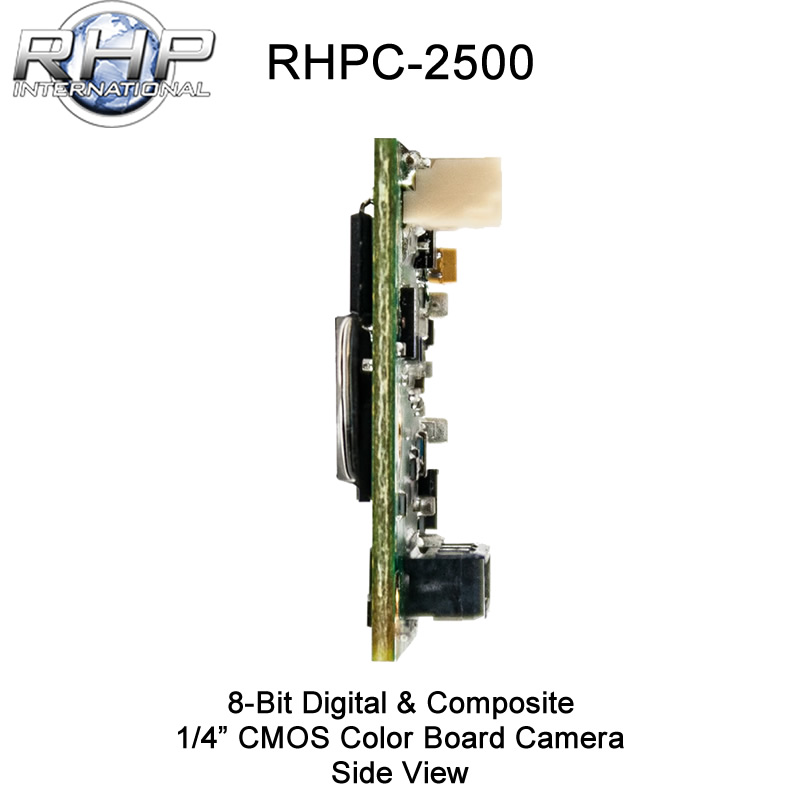

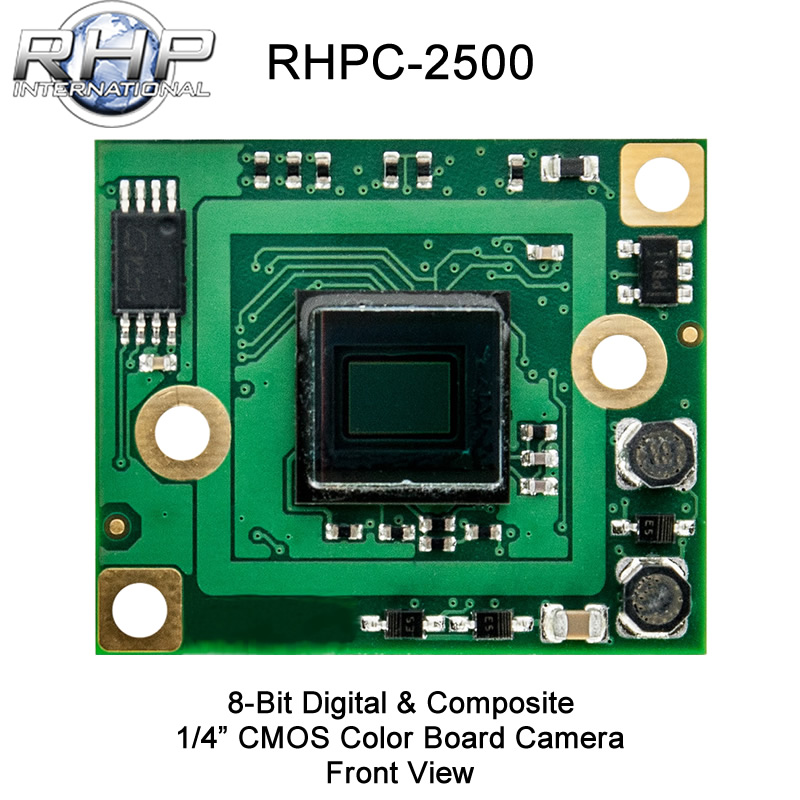

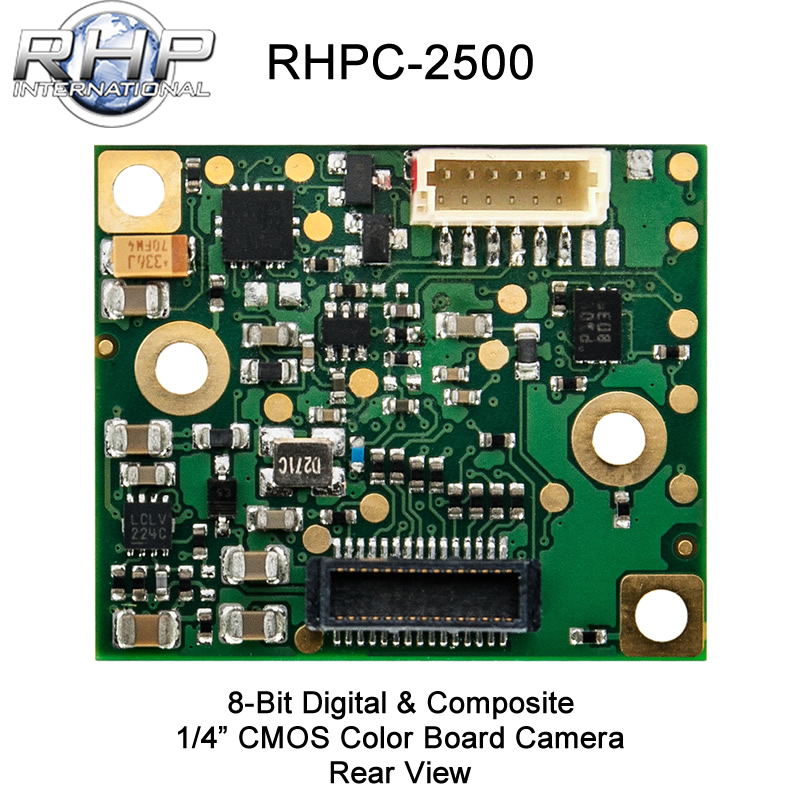

The RHPC-2500 is a compact, high-resolution 1/4″ CMOS analog color board camera designed for OEM integration and embedded imaging applications. Built on a 22 mm × 26 mm single-board platform, the camera delivers reliable NTSC video output while maintaining an extremely small footprint for space-constrained designs.
Operating from a 5 VDC power source, the RHPC-2500 provides stable performance with low power consumption. It supports simultaneous 8-bit digital YUV and composite video output, allowing flexible integration into both digital and analog video systems.
The RHPC-2500 is designed as a direct replacement for the Panasonic GP-CX171 and RHPC-2000, maintaining the same hole pattern, connectors, and pinout while eliminating the need for external heat sinking. This makes it an ideal upgrade path for legacy imaging systems.
*PC Interface Required (RHPC-I2C with Software)
Board Camera Features:
- 1/4″ Color CCD
- 22mm x 26mm Single Boards
- Extremely Compact
- High Resolution
- 5 volt DC Operation
- 8-Bit DIGITAL YUV & composite video output simultaneously
Parameters Controllable via PC Software:
- Electronic Shutter
- Gain Control
- White Balance
- Color Balance
- Back light Compensation
- Mirror Effect
- Negative / Positive Image
- Monochrome (B&W) Mode
| Image Sensor | |
|---|---|
| Resolution | |
| Frame Rate | |
| Sensitivity |
< 0.05 lux, (50 IRE) F1.2, 3200°K, lens transmission 80%, scene reflection 75% |
| Signal to Noise Ratio | |
| Gamma | |
| Gain Control | |
| Scan Mode | |
| Mirror Mode | |
| Synchronization | |
| Back Light Compensation | |
| White Balance | |
| Contour Enhancement | |
| Iris Control | |
| Shutter |
Automatic from 1/60 to 1/100,000 (NTSC), Automatic from 1/50 to 1/100,000 (PAL) |
| Video Outputs | |
| Control communication | |
| Power Supply | |
| Power Consumption | |
| Operating Temperature | |
| Operating Humidity | |
| Storage Temperature Range | |
| Storage Humidity | |
| Lifetime MTBF | |
| Standard Package | |
| What's In The Box |
1 – RHPC-2500 – 1/4'' CMOS Color Board Camera 1 – Lens Mount 1 – Lens |
| Dimensions | |
| Weight | |
| Available Lens Mounts |
CS mount (available upon request), M-12 board mount (included – standard) |
| Available Lenses |
12mm f2.0 1/3in, 16mm f2.0 1/3in, 2.1mm f2.0 1/3in, 25mm f2.5 1/3in, 3.0mm f2.0 1/3in, 3.6mm f2.0 1/3in, 3.8mm f2.0 1/3in, 4.0mm f2.0 1/3in, 6.0mm f2.0 1/3in, 8.0mm f2.0 1/3in |
