RHP IP LVDS Encoder Board
$299.95
We usually have a majority of these items in stock. Please call or contact us for availability.
-
LVDS Digital Video InputAccepts high-speed LVDS video from compatible encoder boards or imaging modules, enabling direct digital video ingestion without analog conversion.
-
H.264 & MJPEG CompressionOffers H.264 Baseline and Main profiles for efficient bandwidth usage, as well as MJPEG for applications requiring frame-by-frame access or minimal compression artifacts.
-
Flexible Power OptionsOperates from 12VDC input and supports PoE, simplifying installation in distributed or remote systems.
-
Multi-Stream IP EncodingSupports up to three simultaneous video streams, allowing different resolutions, frame rates, or compression formats for viewing, recording, and analytics.
-
ONVIF & Network CompatibilityDesigned for use with LAN-based and ONVIF-compliant applications, enabling plug-and-play integration with existing IP video infrastructure.
-
Alarm & Event HandlingIntegrated motion detection, alarm input/output, and network-triggered events support intelligent monitoring and automated responses.
We usually have a majority of these items in stock.
Please call or contact us for availability.

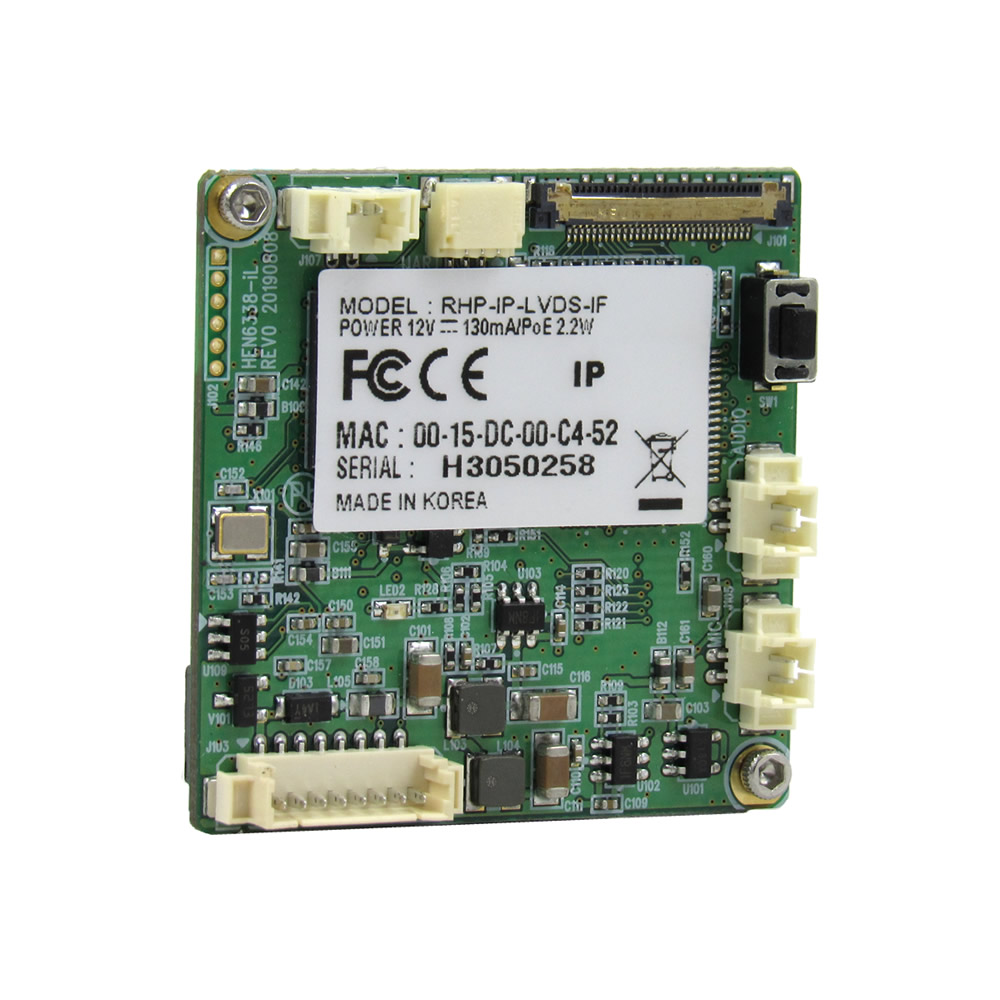

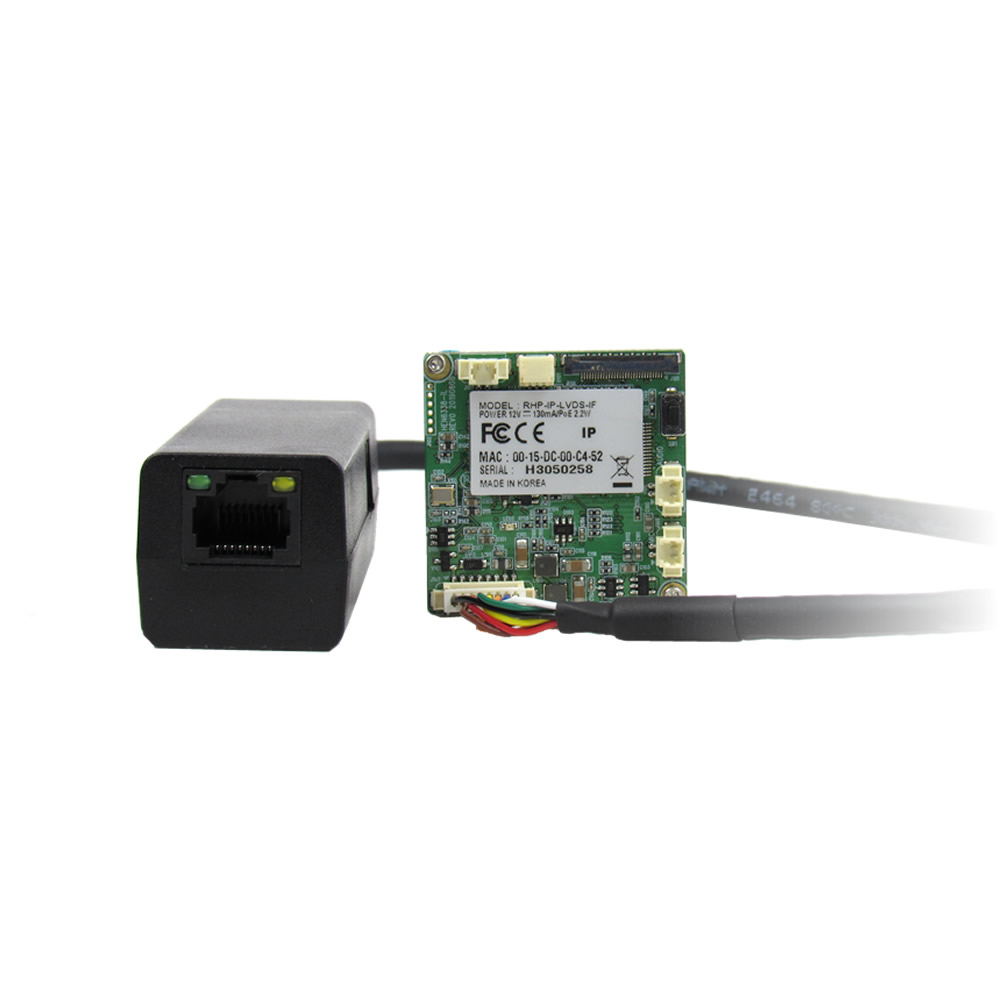

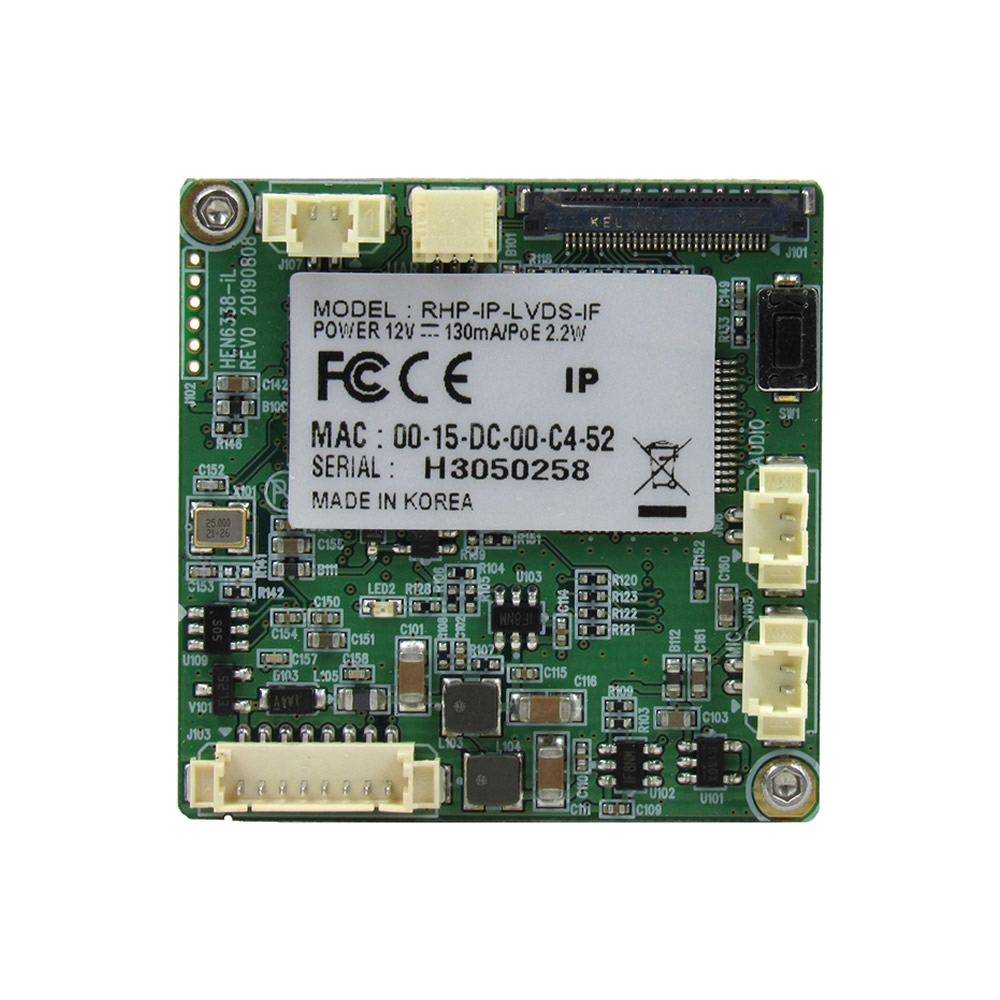

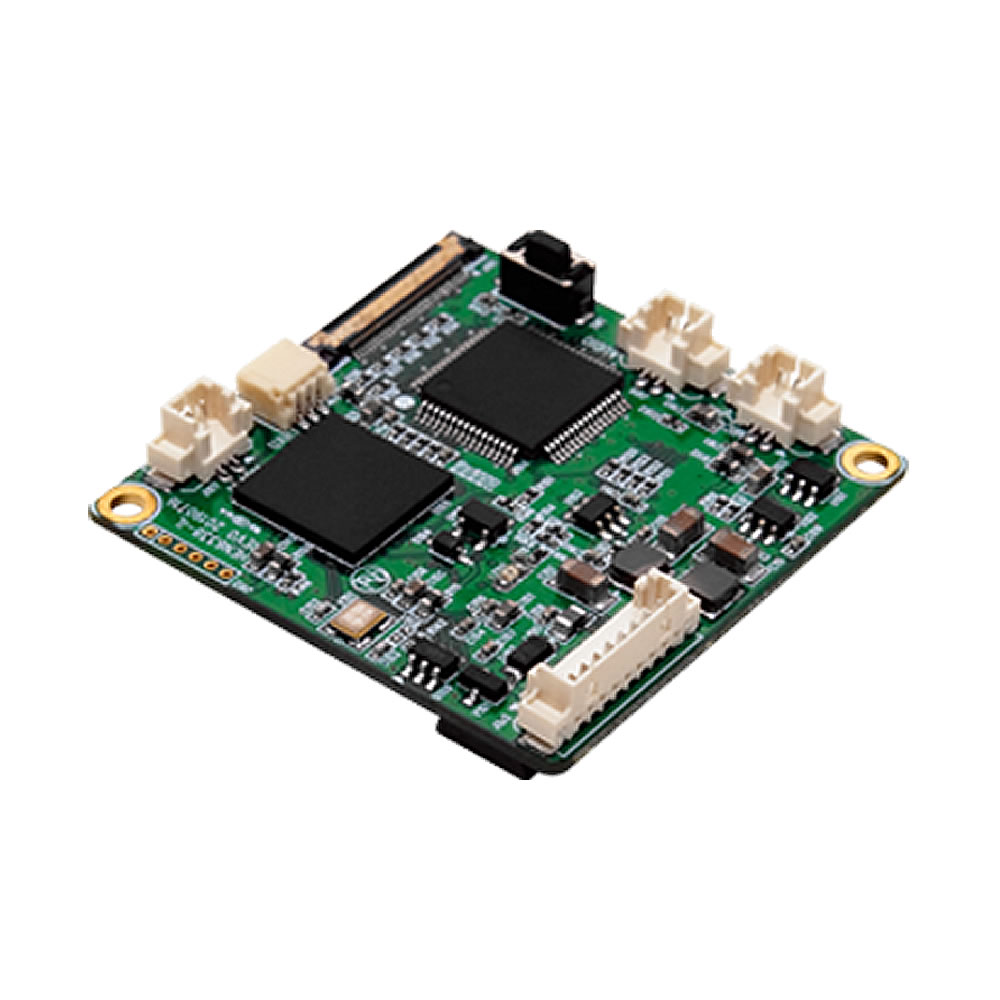

RHP IP LVDS Encoder Board
The RHP IP LVDS Encoder Board converts high-speed LVDS digital video into a fully networked IP video stream, enabling seamless integration with LAN-based and ONVIF-compliant systems. Designed for embedded and industrial applications, the encoder delivers high-quality H.264 or MJPEG video with multi-stream support, flexible bitrate control, and real-time network distribution. Ideal for systems requiring remote access, recording, and analytics, the RHP IP LVDS Encoder Board bridges sensor-level video to modern IP infrastructures with minimal latency and maximum compatibility.

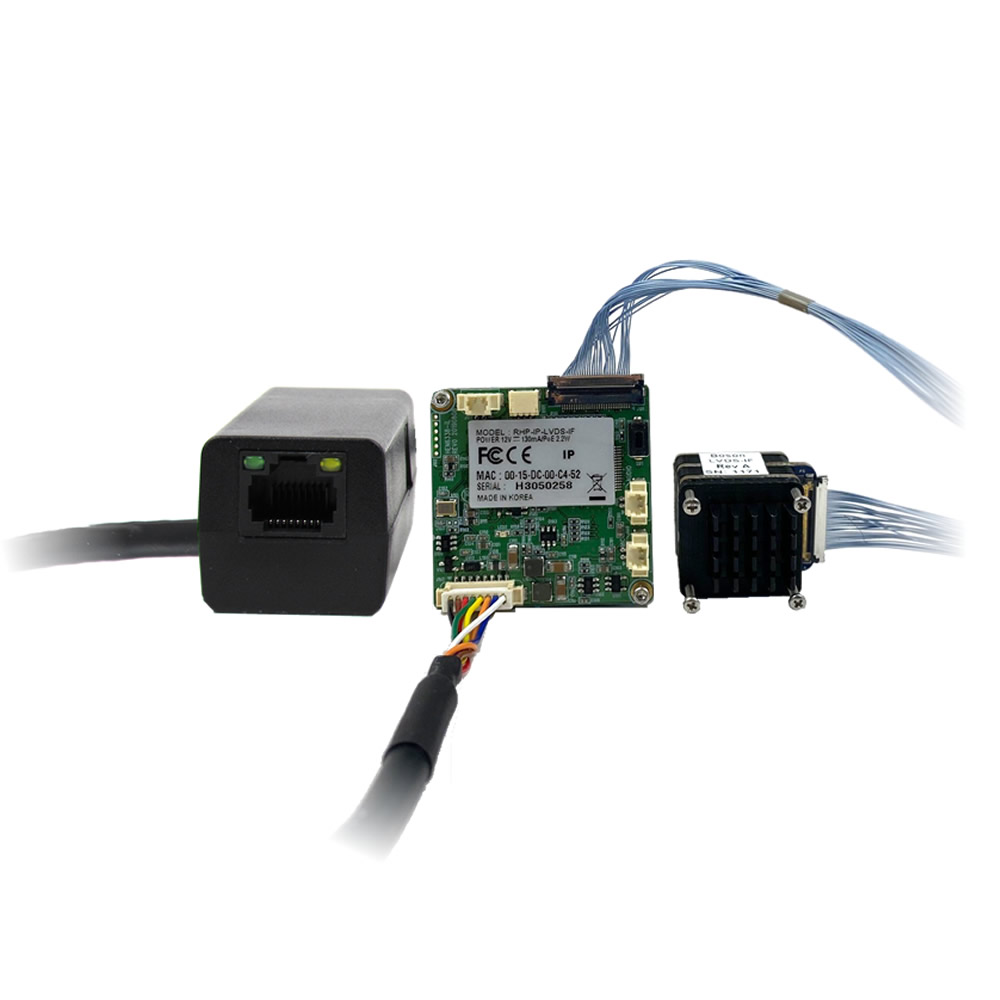

The RHP IP LVDS Encoder Board is used to encode LVDS digital video such as output from a thermal or visible imaging sensor into an IP-based video stream for transmission over standard Ethernet networks. By converting raw video into H.264 or MJPEG streams, the board enables direct connection to network video recorders (NVRs), monitoring software, ONVIF-compatible systems, and custom applications. This allows imaging data to be viewed, recorded, analyzed, or distributed across local or remote networks, making it ideal for surveillance, industrial monitoring, and embedded vision systems where centralized access and scalability are required.
Software & Compatibility
SDK Support: ONVIF
Standards Compliance: IPv4, HTTP, UPnP, DNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP)
Applications: |
||
| Networked thermal and visible surveillance systems | Industrial process monitoring | Remote inspection and diagnostics |
| Embedded vision platforms with IP backhaul | Research, testing, and development systems | Edge devices feeding centralized analytics or AI servers |
| Ethernet | |
|---|---|
| Max. Frames per Second | |
| Video Compression | |
| Video Output | |
| Power | |
| Bit Rate | |
| IP | |
| Alarm Functions |
Alarm In/Out: 1Ch Out Alarm Triggers: Motion Alarm Events: Network |
| Streaming Video | |
| Power Consumption | |
| Protocol |
HTTP, HTTPS, UPnP, DNS, DDNS, RTP/RTSP, TCP/IP, UDP, DHCP, RARP, NTP, Visca over IP (HTTP) |
| Video Output Format |
1920×1080, 1280×720,, 800×600, 704×480, 704×400, 640×480, 640×360, 320×240 |
| Audio Inputs | |
| Audio Outputs | |
| Privacy Mask | |
| Motion Detection | |
| What's In The Box |
1x LVDS to IP Module, 1x PoE Cable/Network Adapter, 1x Installation Guide |
