RHP Boson RC-IF Remote Control Interface
$399.00
We usually have a majority of these items in stock. Please call or contact us for availability.
Ideal for sUAS and UAV Operations
- 6 to 26 Volts DC Input
- Reverse Polarity Protection
- Control w/RC Receiver
- S-Bus & PWM
- USB Video Support
- Color Palette Selection
- (FFC) Flat Field Correction Shutter Control
- (DDE) Digital Detail Enhancement
- Thermal AGC
- Continuous Digital Zoom
- 2 Composite Video Outputs
- USB Video Output
- 5.8 grams
We usually have a majority of these items in stock.
Please call or contact us for availability.
RHP-BOS-RC-IF

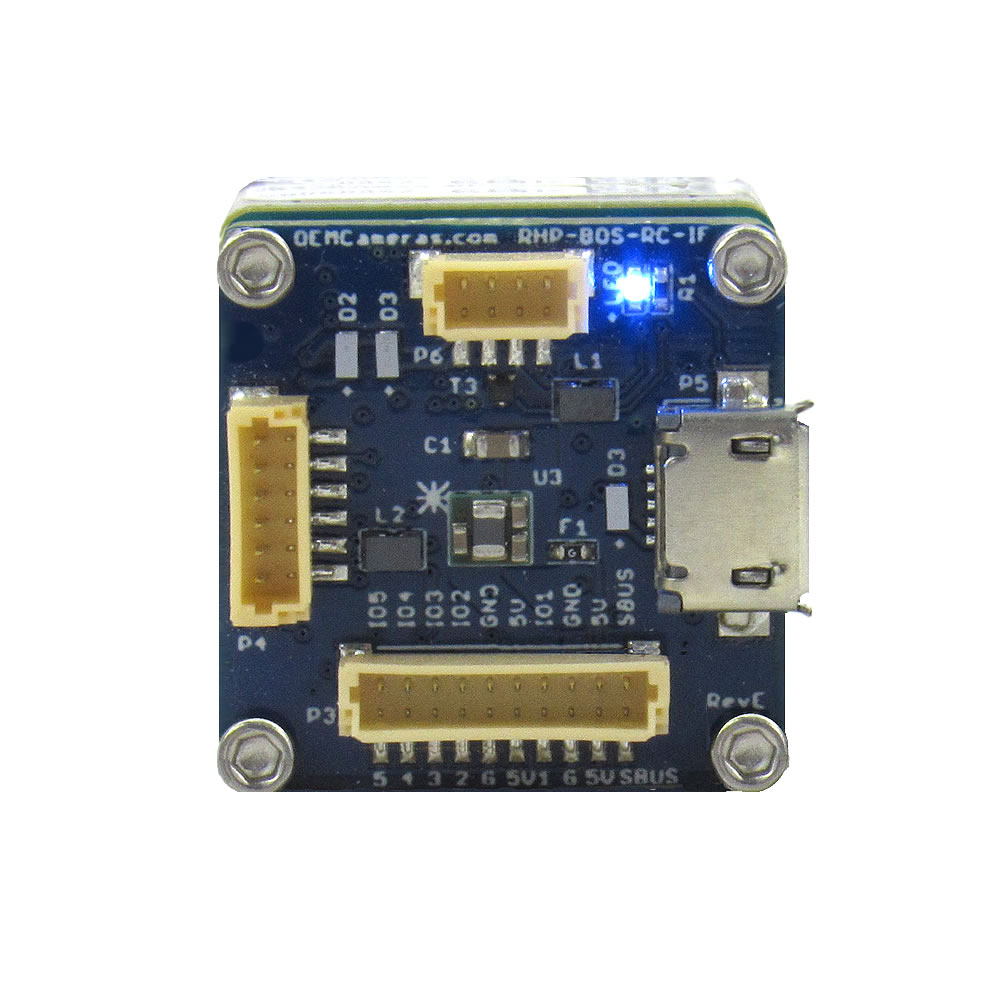

RC-IF Remote Control Interface for the FLIR Boson and Boson+
Ideal for sUAS and UAV operations, the RHP-BOS-RC-IF for FLIR Boson offers a streamlined way to control the FLIR Boson thermal imaging camera. Weighing only 5.8 grams, this device features 6 to 26 Volts DC Input with reverse polarity protection, ensuring safe and reliable operations. With the available S-Bus and PWM connections, drone pilots can easily manipulate their FLIR Boson parameters – Remotely! Additionally, this interface includes USB video support, two composite video outputs, and a USB video output for added convenience.
Integrating the Boson Thermal Camera into your UAS has never been easier.
Control the Boson Camera Remotely
The RHP-BOS-RC-IF allows you to control the Boson camera remotely using a 16 Channel S-Bus Signal or up to 5 PWM Signals from your wireless Joystick Remote Control System.
Assign Parameters
Any available parameter on the Boson can be assigned to knobs, switches or levers on a Joystick Remote Controller or direction pad and adjust camera parameters ‘on-the-fly’.
Reverse Polarity Protected

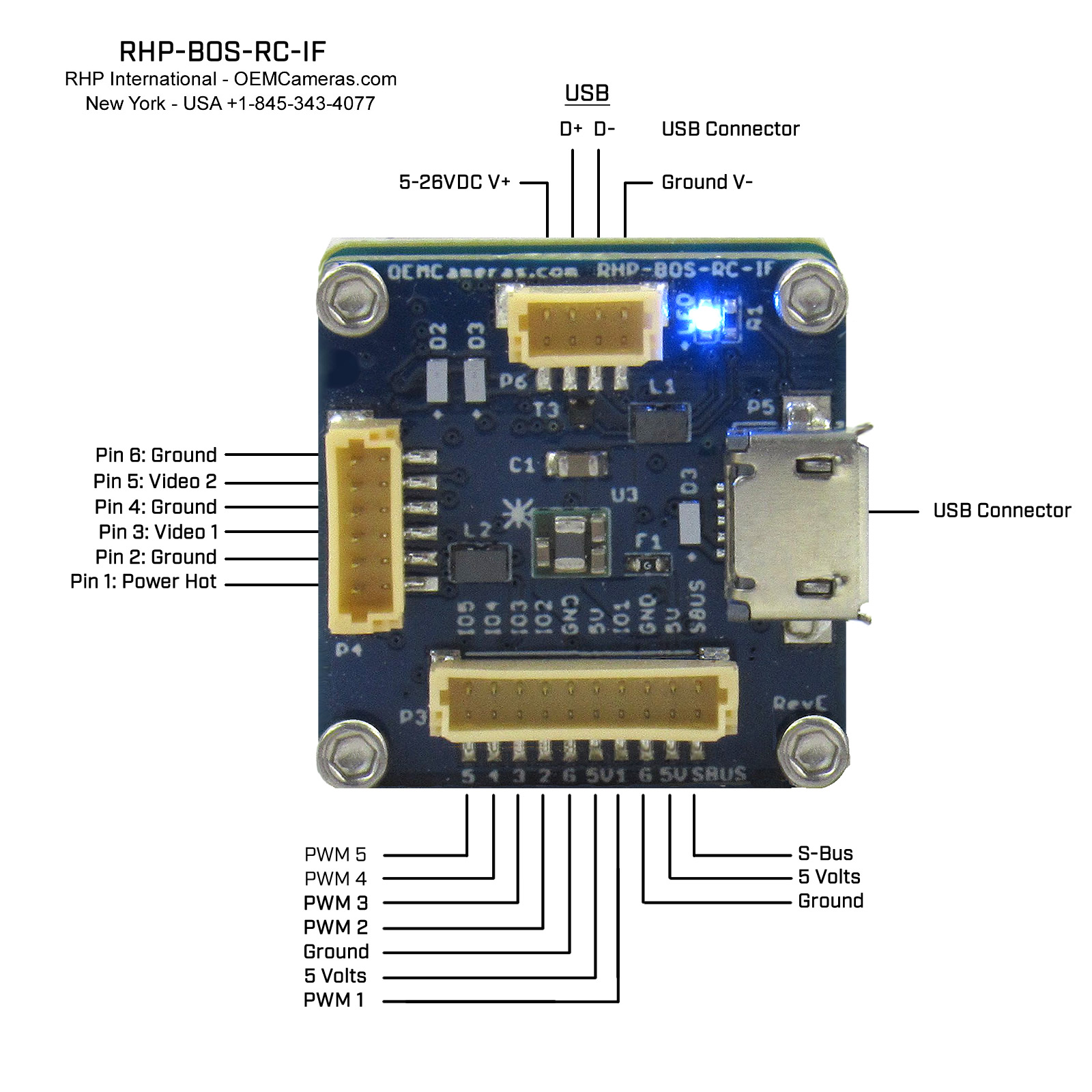

With the intelligent polarity sensing protection, the RHP-BOS-RC-IF can be powered from the 4-Pin JST to USB or 6-Pin JST with a 5-26VDC power source

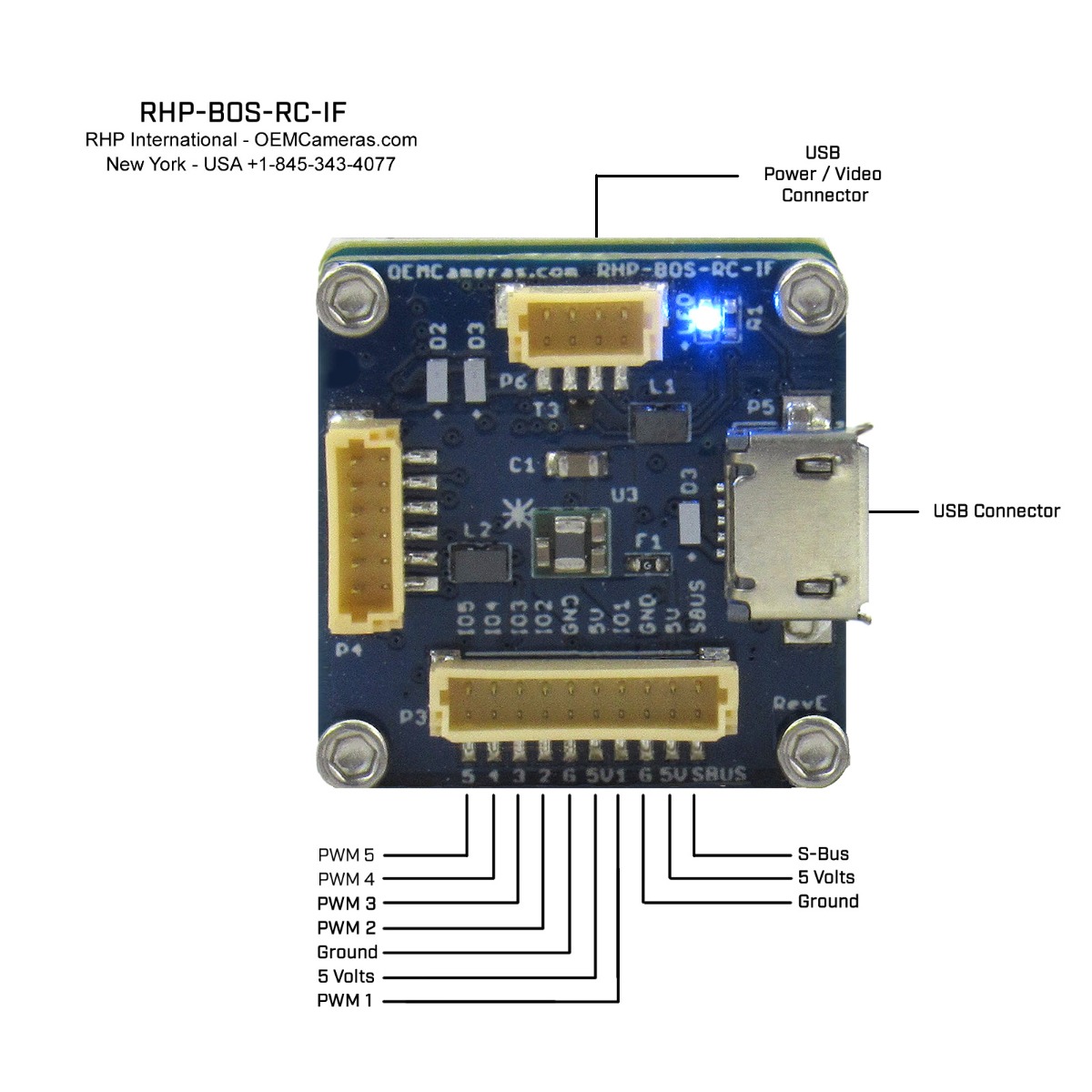

16 Channel S-Bus & 5 Channel PWM Remote Control Interface Module
- Control Camera Features Remotely
- Powers RC Wireless Receiver
- Wide Input Voltage Range
- Reverse Polarity Protection
- Dual Video Outputs
- Setup and Calibration Software Included
