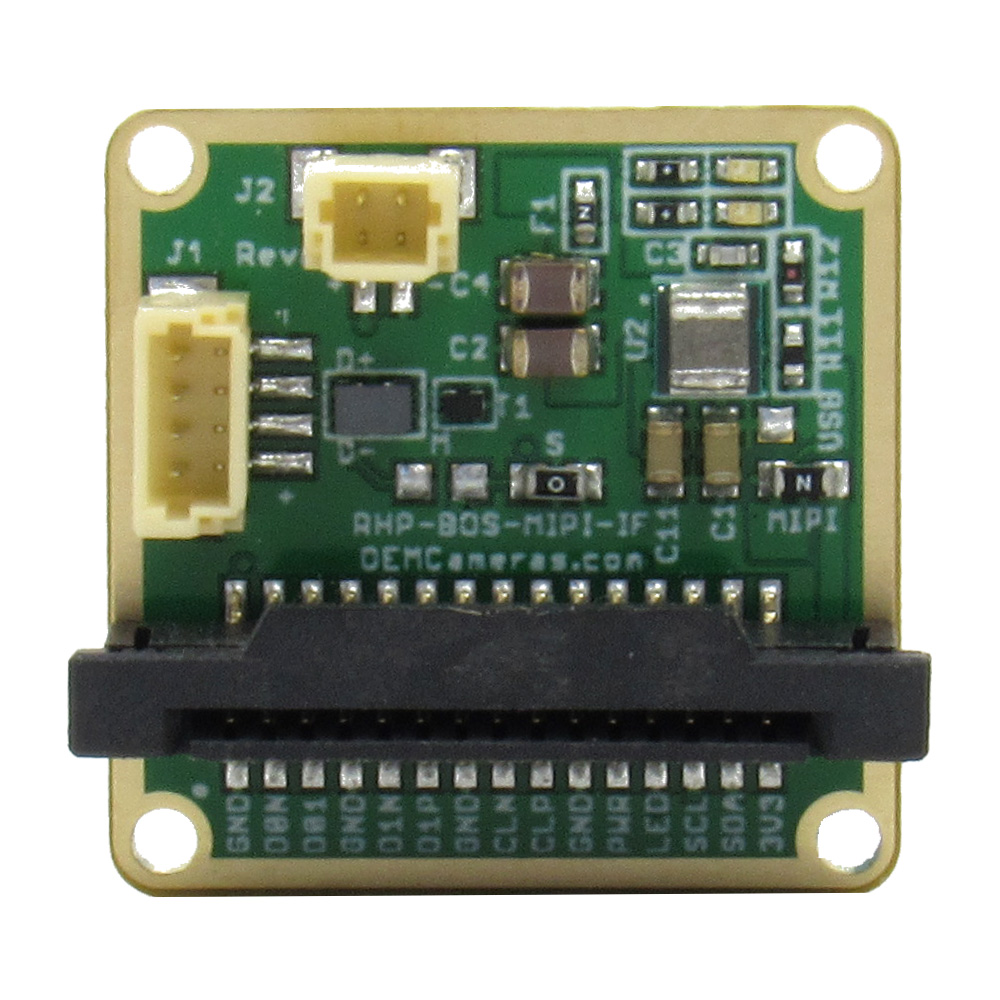

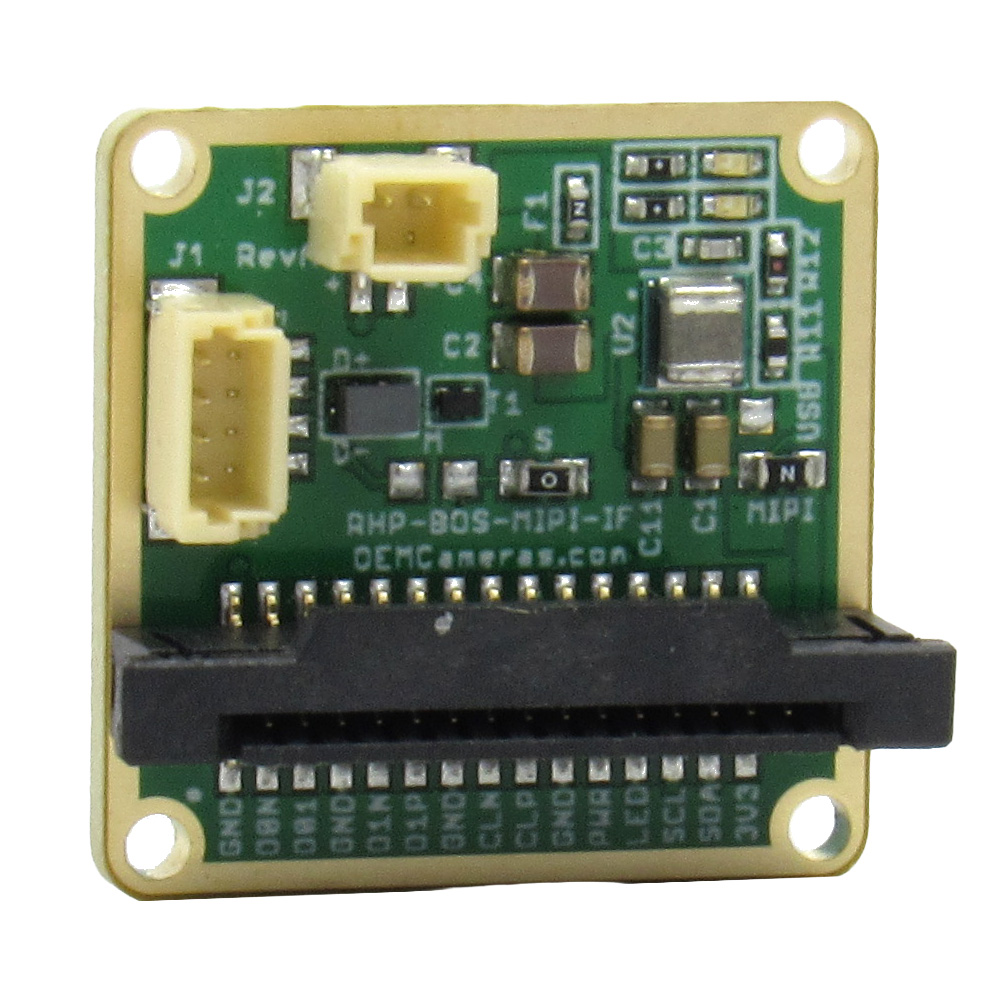

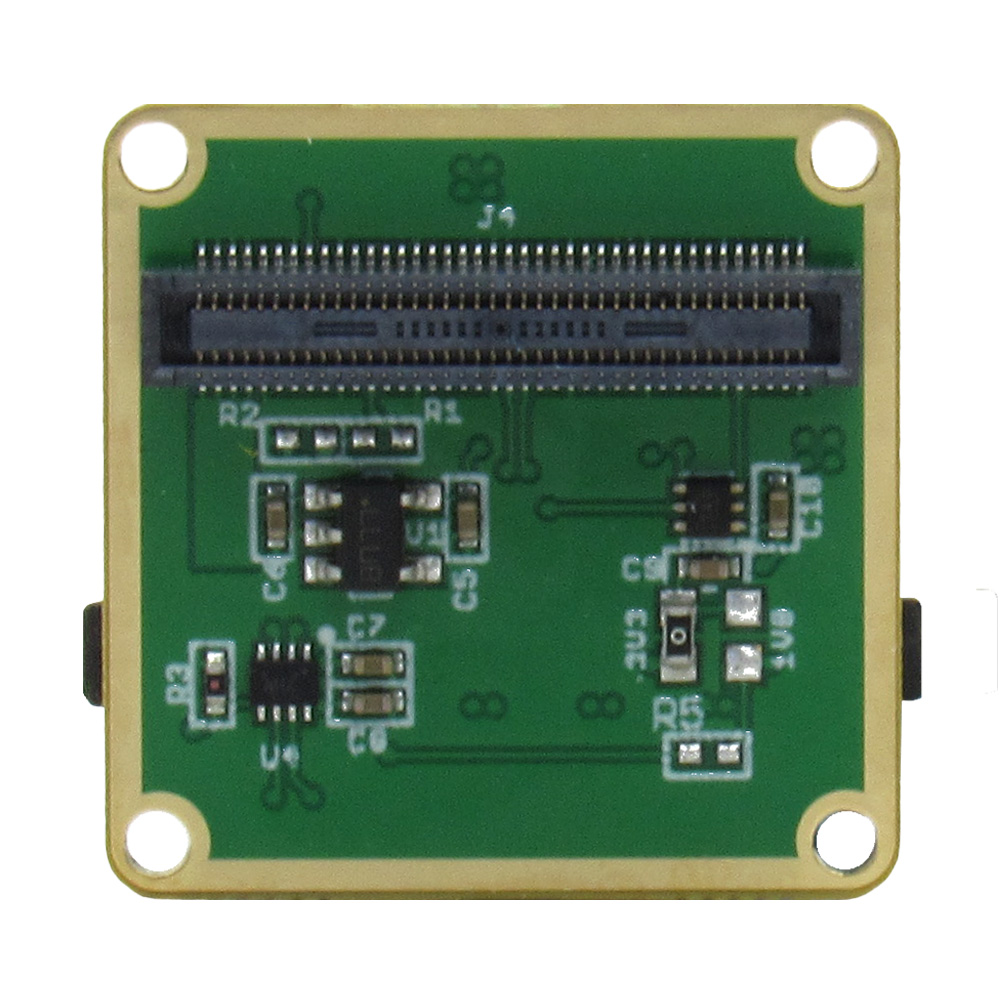

RHP Boson MIPI Interface
$299.00
We usually have a majority of these items in stock. Please call or contact us for availability.
-
MIPI CSI-2 compatible interface for FLIR Boson+
-
External 5–17 VDC input or 3.3V CSI power (selectable)
-
3.3V or 1.8V Sync, configurable as Master or Slave
-
USB UVC video + communication support
-
I²C communication over MIPI
-
Compatible with NVIDIA Jetson and Raspberry Pi camera pinouts
-
Supports single-lane or dual-lane MIPI configurations
-
Ultra-low latency thermal video output
MIPI Output Only Available with FLIR Boson+
We usually have a majority of these items in stock.
Please call or contact us for availability.
RHP Boson MIPI Interface
| Overview | The RHP Boson MIPI Interface enables direct MIPI CSI connectivity for Teledyne FLIR Boson+ thermal imaging cameras, providing a low-latency, high-bandwidth video path suited for embedded vision platforms.
Designed for engineers developing next-generation thermal systems, this interface supports flexible power configurations, synchronization options, and multiple pixel formats. Intended for development and integration efforts. Driver support may require custom development. |
|---|---|
| MIPI Interface | Supports MIPI CSI v1.1 with DPHY 1.0 Configurable for single or dual lane operation |
| Pixel Formats | • RAW8 (monochrome, post-AGC) • RAW14 (pre-AGC) • 16-bit UYVY (color, post-AGC) |
| Single Channel Mode | • Monochrome 8-bit • Monochrome 14-bit • Post-AGC 8-bit monochrome • Post-AGC 16-bit color YUV422 (UYVY) |
| Dual Channel Mode | • Monochrome 8-bit & 14-bit • UYVY + Monochrome 8-bit • UYVY + Monochrome 14-bit |
| Performance | • MIPI DDR clock: 246 MHz • Latency: < 4.8 ms |
| Power | • External: 5–17 VDC • 3.3V CSI-powered |
| Synchronization | • Voltage: 3.3V or 1.8V • Modes: Master / Slave (multi-device systems) |
| Platform Compatibility | • NVIDIA Jetson platforms • Raspberry Pi camera interfaces • USB UVC mode for evaluation/debugging |
| Software Notes |
⚠️ MIPI Output Only Available with FLIR Boson+This product is intended for engineering/development use |
| Applications | • Embedded thermal vision systems • AI perception platforms • Robotics and autonomous systems • Industrial monitoring • Defense and research prototypes |
| Input Voltage | |
|---|---|
| Sync Voltage |
Sync Voltage 3.3V Logic (default), Sync Voltage 1.8V Logic |
| Synchronization Modes | |
| MiPi Standard |
CSI v1.1, DPHY 1.0 |
| MIPI Lanes |
Lanes Single or Dual (software configurable) |
| MIPI DDR Clock |
246 MHz |
| Latency | |
| Platform Compatibility |
NVIDIA Jetson platforms, Raspberry Pi camera interfaces |
