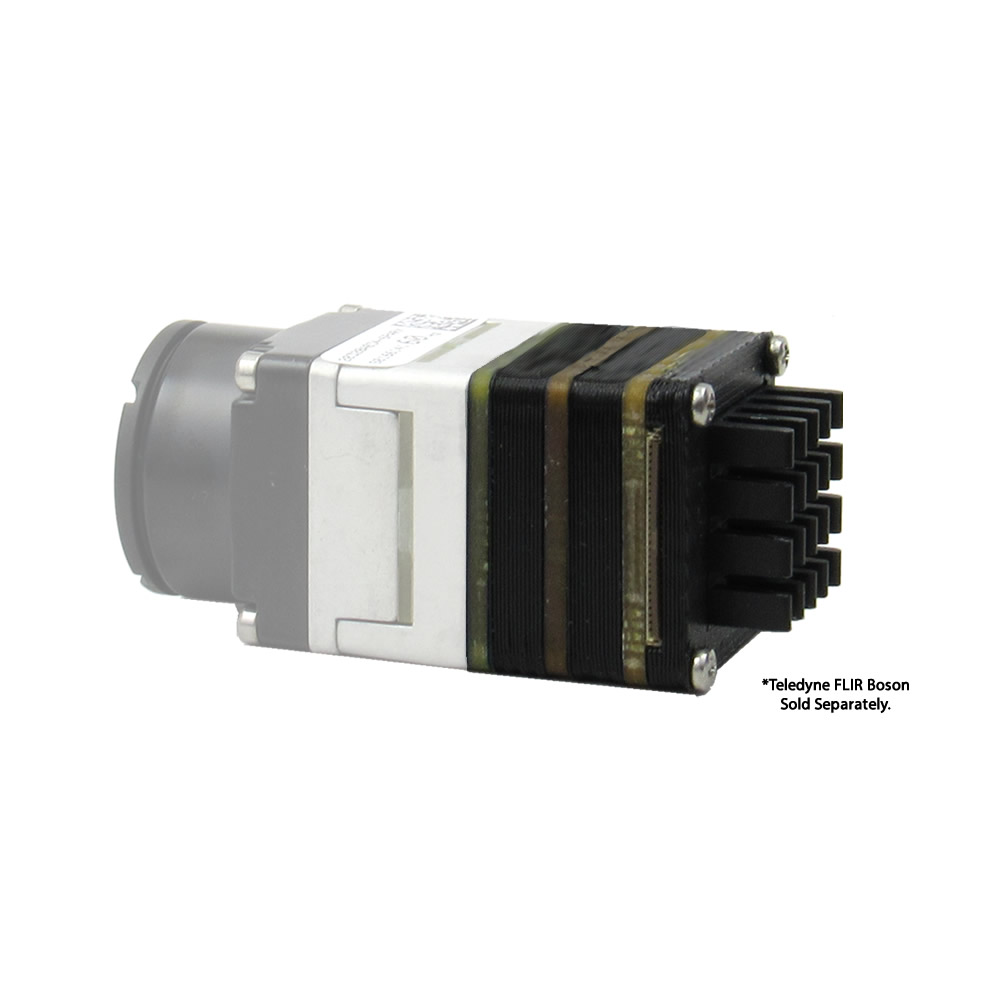

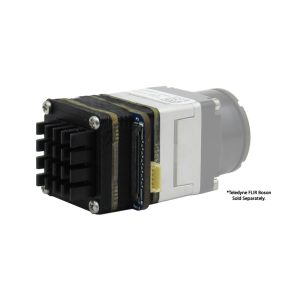

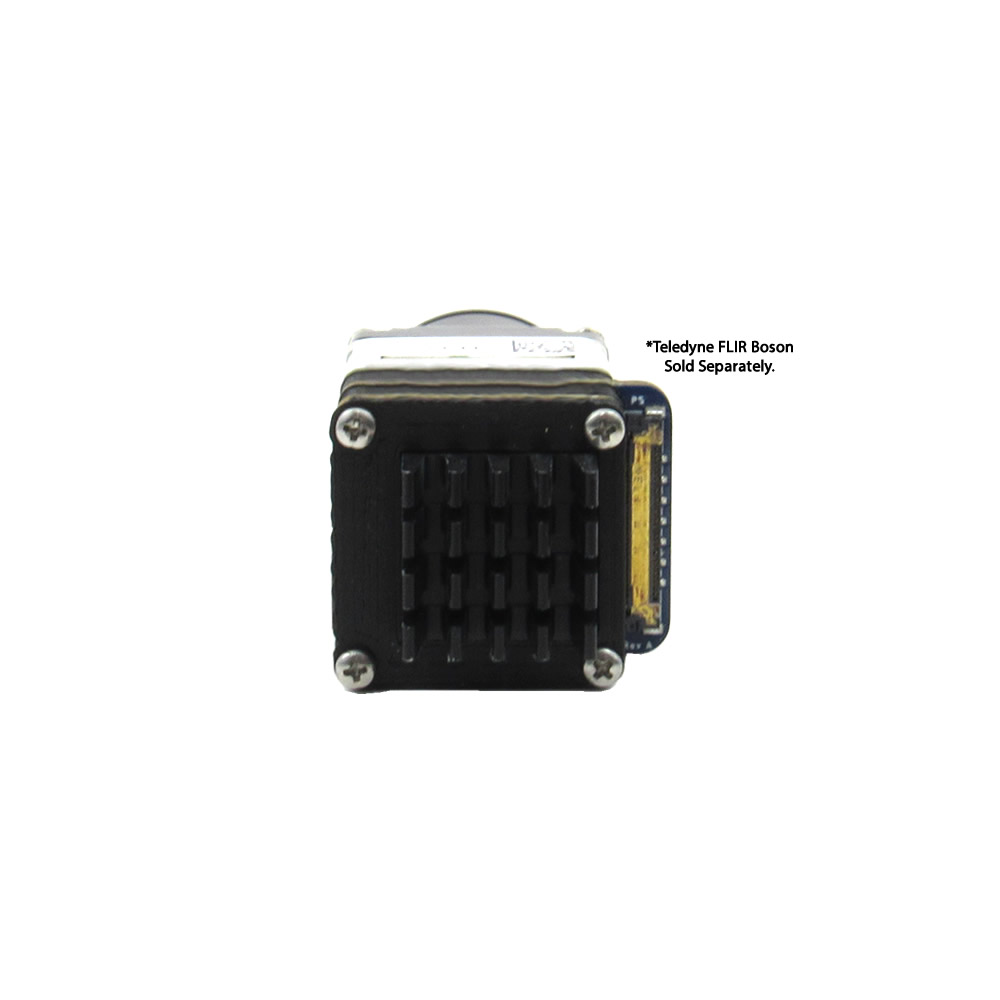

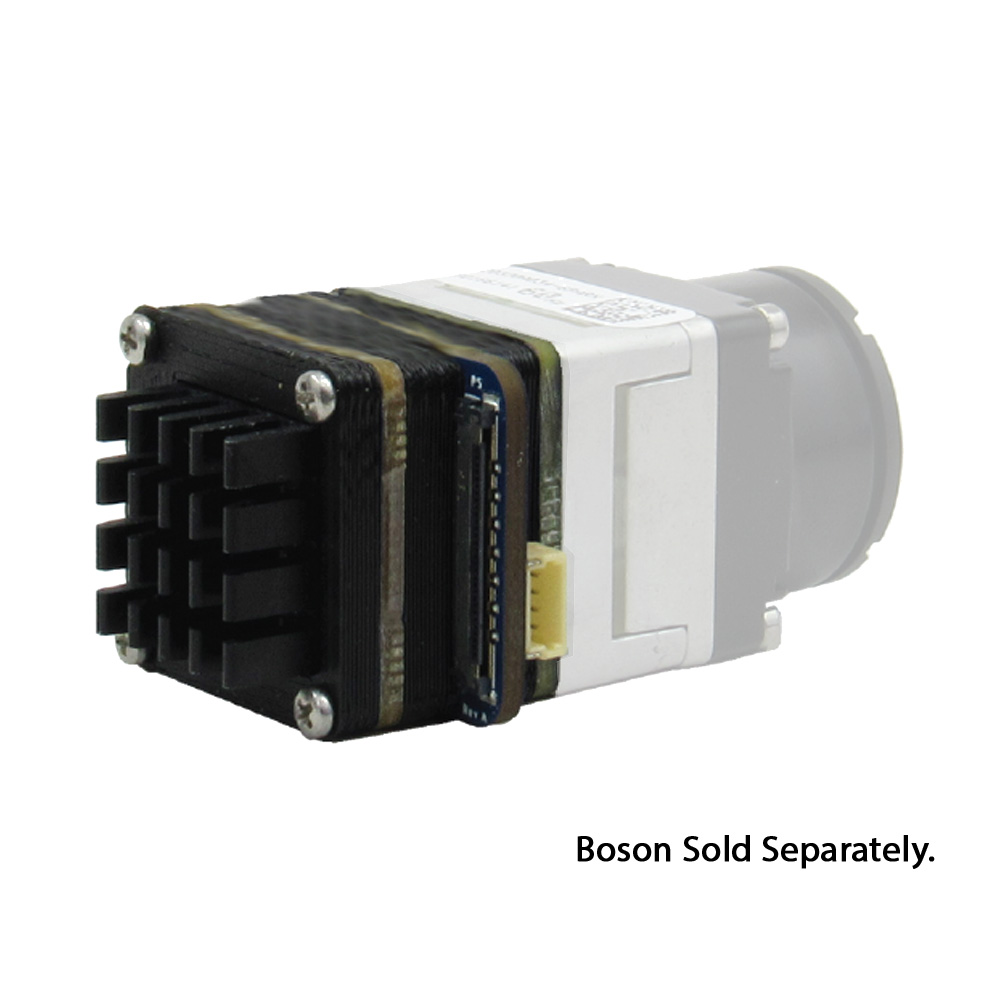

RHP Boson LVDS Encoder Board
$599.90
We usually have a majority of these items in stock. Please call or contact us for availability.
- 5-26VDC Input 6V-26VDC recommended
- Power over LVDS interface is possible.
- Upscale video to 1080p and output over LVDS for backwards compatibility with existing systems.
- Compatible with LVDS IP Encoder for ONVIF compliant output
- USB Setup and Configuration
- 3 Configurable profiles for power up defaults

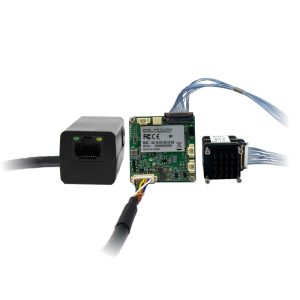

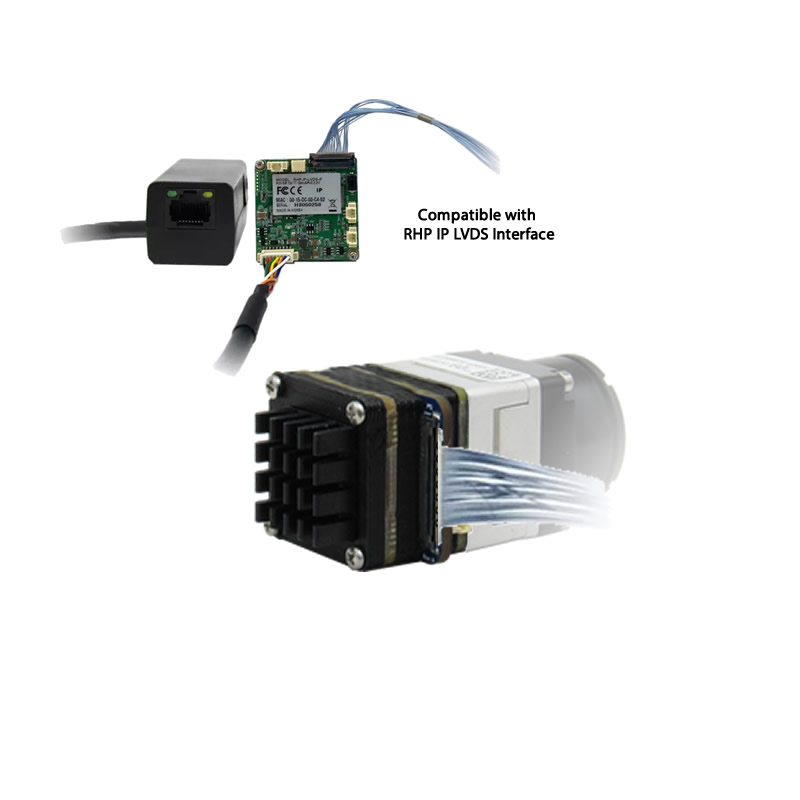

- Compatible with RHP IP LVDS Encoder Board
We usually have a majority of these items in stock.
Please call or contact us for availability.
 |
 |
 |
| VERSATILE POWER INPUT RANGE | 1080P OUTPUT | PROFILES TO SONY BLOCK CAMERAS |
| With the 5-26VDC input range (6V-26VDC recommended), this encoder board provides seamless power integration. It offers the convenience of power-over-LVDS interface capability, enabling efficient performance |
The output over LVDS ensures seamless integration with your current systems, preserving backwards compatibility. The LVDS IP Encoder enables ONVIF compliant output for enhanced connectivity options. | Auto power-up profile is specifically tailored for Sony block cameras, streamlining your workflow. |
| SPECIFICATIONS: | ||
| Power | 5-26VDC Input (6V-26VDC recommended) – Power over LVDS interface is possible. | |
| Video Output | Upscale video to 1080p and output over LVDS for backwards compatibility with existing systems | |
| Video Over Ethernet | Compatible with LVDS IP Encoder for ONVIF compliant output | |
| Size | Compatible with LVDS IP Encoder for ONVIF compliant output | |
| Weight | 13 grams | |
| Power Consumption | 0.25A @ 5V / 1.25W Max. | |
