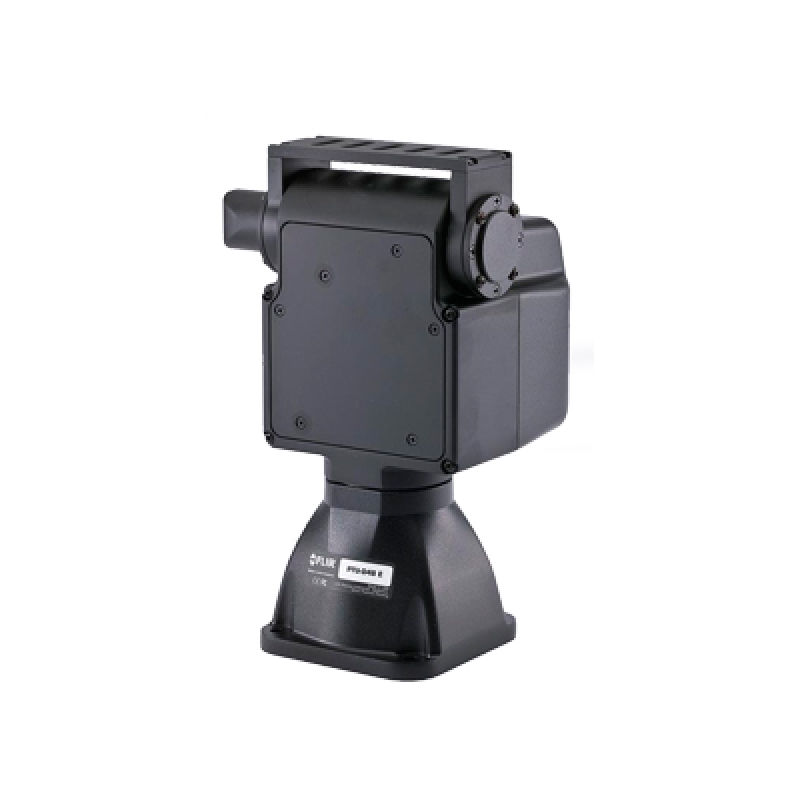

Teledyne FLIR D48E Pan-Tilt Motion Control System
- Payload Capacity: up to 15 lbs.
- Pan Range: +/- 175°
- Tilt Range: +30° / -90°
- Accuracy: 0.003° Tilt / 0.006 Pan
- Voltage: 12-30 VDC
- Weight: 12 lbs
- Ethernet RS-232 & RS-485
- IP67 Rated
We usually have a majority of these items in stock.
Please call or contact us for availability.
FLIR PTU-D48E
PAN/TILT UNIT FOR SIDE-MOUNTED PAYLOADS UP TO 15 LBS
The PTU-D48 E-Series supports any type of single or multi-part payload through a flexible bracketing system of top and/or side mounting. The real-time command interface supports advanced applications such as video tracking. The PTU-D48 E-Series has been proven in a wide range of mission-critical applications for positioning of cameras, lasers, antennas, or other instruments in both fixed and mobile environments. It is designed for high duty cycles and reliable operation 24/7 in harsh all-weather environments.
HIGH PERFORMANCE WITH HEFTY PAYLOADS
With payload capacity up to 15 pounds and precise positioning, D48 pan/tilts have a wide range of pan speeds for smooth, precise control.
RUGGED PRECISION POINTING
Precise, real-time control of position, speed, and acceleration — plus a rigid worm gear design — provides steady positioning in windy environments and vehicle-mounted applications.
POWERFUL PERFORMANCE
With integrated Ethernet and Web interfaces, increased command rates, reduced jitter, and advanced microstep control, D48 pan/tilts provide advanced performance.
TOP MOUNTING BRACKETS (TMB)
TOP PAYLOAD CAPACITY
SIDE MOUNTING BRACKETS (SMB)
SIDE PAYLOAD CAPACITY
TOTAL PAYLOAD CAPACITY
| Pan Resolution | |
|---|---|
| Tilt Resolution | |
| Input Voltage |
12-30 VDC unregulated (fastest performance and torque @ 30 VDC) |
| Power Consumption | |
| Payload Mounting | |
| Slipring | |
| Weight | |
| Interface Controls | |
| Wiring Configuration | |
| Operating Temperature | |
| Standards | |
| ECCN Code |
